ROS 2 Architecture

This document provides a technical overview of the ROS 2 architecture, detailing its fundamental design patterns, layers, and components. It covers the high-level architectural design and the interactions between different parts of the system.

This is only a high level introduction

This chapter covers only very high level the concepts of ROS 2. There are a series of good introduction books which are a good first learning start.

Architectural Principles

ROS 2 represents a complete redesign of the original Robot Operating System framework, addressing limitations in the original design while incorporating modern software engineering practices. The architecture adheres to the following key principles:

  • Distributed and peer-to-peer communication
  • Real-time capability through Quality of Service settings
  • Production-grade reliability and security
  • Cross-platform compatibility (Linux, Windows, macOS)
  • Modular design allowing component replacement

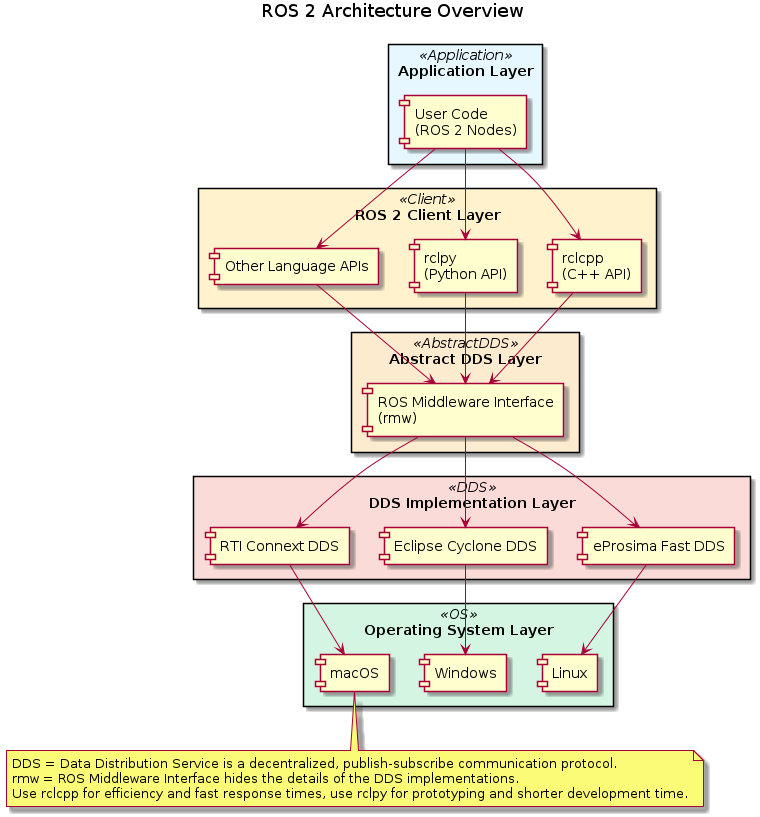

Layered Architecture

ROS 2 follows a layered architecture with well-defined interfaces between layers:

ros-architecture

  • Application Layer: Contains user-developed nodes and applications.
  • Client Library Layer: Language-specific APIs (rclcpp, rclpy) that expose ROS functionality.
  • RCL Layer: Common C API (rcl) providing unified functionality to client libraries.
  • Middleware Abstraction Layer: An abstract interface (rmw) to the underlying middleware.
  • Middleware Layer: Various DDS implementations (Fast DDS, Cyclone DDS, Connext DDS).

This layered approach provides flexibility for developers to choose appropriate implementations while maintaining API compatibility.

Node-Based Architecture

ROS 2 implements a node-based architecture where:

  • Each node represents a single-purpose, modular process
  • Nodes maintain unique names within the ROS graph (e.g., TalkerNode, * ListenerNode)
  • Nodes automatically discover others using DDS discovery mechanisms
  • Nodes operate independently but can communicate with other nodes
  • Nodes can be grouped into packages and launched together

Each node can:

  • Publish/subscribe to topics
  • Provide/use services
  • Provide/use actions
  • Store/access parameters

Communication Infrastructure

ROS 2 provides three primary communication patterns:

  1. Topics (Publisher/Subscriber)
    • Used for continuous data streams
    • One-to-many communication
    • Asynchronous, connectionless
  2. Services (Request/Response)
    • Used for query-based interactions
    • One-to-one communication
    • Synchronous (blocking)
  3. Actions (Goal/Feedback/Result)
    • Used for long-running tasks
    • Built on topics and services
    • Provides goal cancellation and preemption

Each communication pattern is implemented using the DDS middleware, which provides transport-level reliability and discovery.
